RINGS 1200 030

Original price was: 319.00kr.Current price is: 95.70kr.

SKU: DS750823 Category:

Description

Beskrivning av RINGS 1200 030

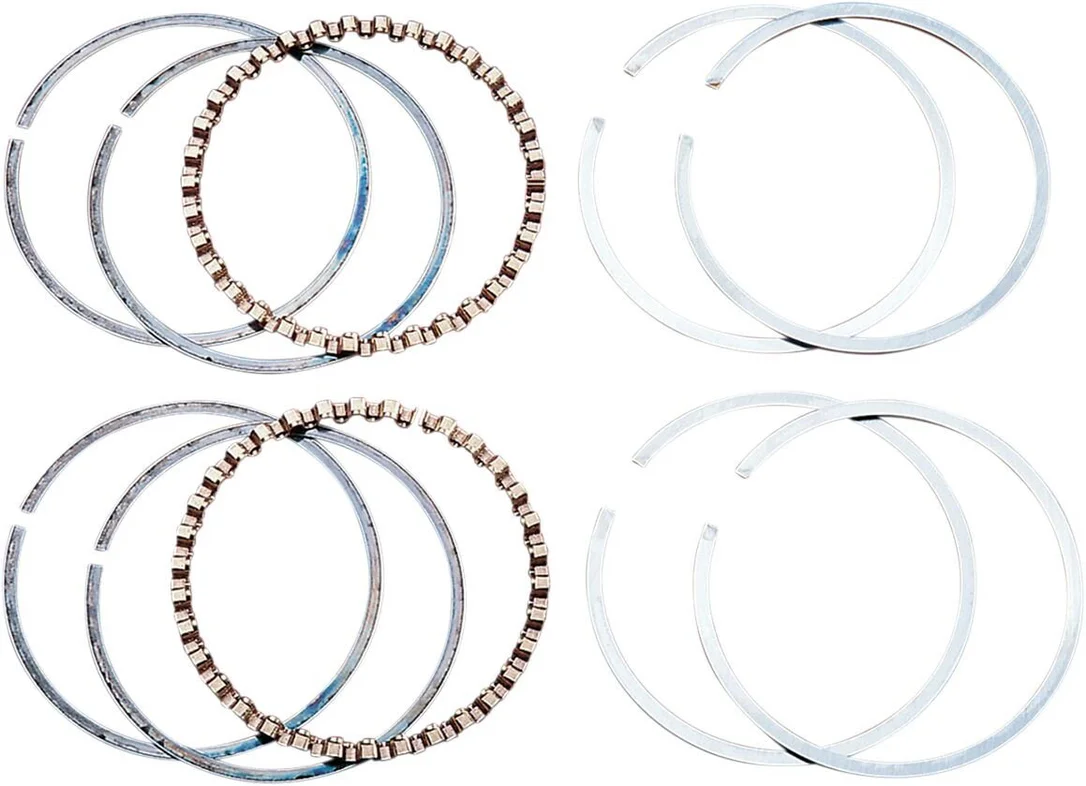

Replacement Piston Rings

  • Includes top compression rings, second compression rings, and oil control rings
  • Top Compression Rings are Barrel Face
  • Helps in the the heat transfer process between the piston and cylinder wall
  • Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
  • Second Compression Ring are Reverse Torsional Taper Face
  • Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
  • Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
  • Oil Control Rings are Three Piece Flex Vent
  • Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
  • Provides uniform pressure through four steel rails and two expanders assuring positive oil control
  • Made in the USA
  • Due to the thermal conductivity and design of KB pistons, special attention is required to the top ring end gap.Please read instructions furnished with piston for correct ring installation.
  • Includes enough rings for two pistons (unless noted).
  • Two rings per groove, except for the rails that will be two rail rings per one expander ring.



    • Kit Includes:• 2x Top Compression Rings 0.0625″• 2x Second Compression Rings 0.0625″• 2x Expander Rings• 4x Steel Rails
